1. Introduction of Product

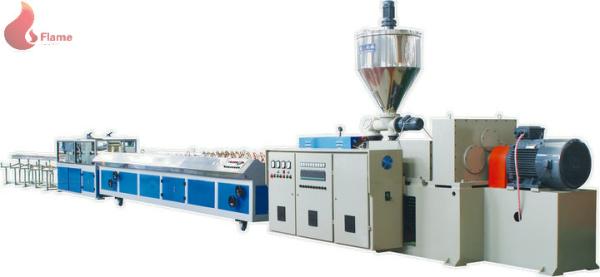

PVC profile production line is mainly used in producing PVC profile, multi-hole cable duct (4-hole, 6-hole, 7-hole, 9-hole option). According to the different sectional drawings and molds we can choose different conical or parallel twin screw extruder and provide relative vacuum sizing tank, haul-off, cutter, stacker auxiliary equipments. The capacity of main by our special up-down technology with the advantages of stable working, good reliability, heavy traction, etc. The vacuum sizing tank adopts special extra-big whirlpool cooling system to satisfy the cooling, shaping and high-speed extrusion. The moving speed of cutter and drawing speed keep synchronous with PLC controller, reasonable design, running stable, auto fixed length cutting, assembled swarf suction device. According to the different molds, the vacuum sizing tank can adopt 4m, 6m, 8m, 11m, etc. If we use parallel twin screw extruder it will be suitable for high speed extrusion of the profile.

2. Quick Detail:
This production is used to produce PVC door/window profile, elbowboard, the decoration panel, multi-hole wire- through pipe and other profiles. It main contents Plastic Loader, Extruder, Mould, Vacuum Calibration Table, Haul-off, Cutter and Stacker. It can produce different sections and thickness of profile by changing the type of machine and mould.

3. Description:
After the line add or replacing the different spare part, can be produced plastic steel window profile, pinch, plate, window sill, siding plate, corrugated sheets and wpc of floor, fences, door panel, door pocket, lines etc.
At present WPC extrusion line has two ways: one step way and two steps way: one step way mainly used to produce PVC wood plastic product, two steps way mainly used to extrude PP/PE wood plastic product. The screws and barrel is treated by bimetal treatment, wearable and anti-erode, featured in good plasticization, high capacity, energy saving and wood powder and the other wooden fibre can occupied high quantity as 50-70%. This equipment is an ideal choice for customers who want to produce wood tray, indoors and outdoors floor, fences, warehouse plate and outdoors decorative material and so on.

3. Applications:

1. PVC door & window profile
2. wide door board
3. window board
4. extrusion of multi-holes tube for passing through lines

4. Specifications:

5. Competitive Advantage:
Fetching in Europe and America advanced technology and uniting with domestic condition, our company develop this production line. It possesses the features such as novel style, reasonable structure and friendly operation. The main extruder in this line, manufactured by our company, matches with auxiliary machines and die head. This production can realize full automatic control from feeding to staking. Meanwhile each machine can be regulated manually. It possesses the advantages such as high elasticizing capacity, low energy consumption, high productivity performance cost value and long life. It’s the best selecting equipment to produce all kinds of plastic profile.

6. Service:

1. Oversea installation guide.
2. Oversea test running
3. Ovsersea worker training
4. Technical support
5. Spare parts supply
6. Technical operation support
7. Formula and processing support

7. Option
The main extruding machine adopts special-designed screw, barrel, mould, Equipped with the auxiliary machineries, it could produce the PP/PE/PVC wood-plastic products, It’s a new environment-protecting product, which combines the wood powder and plastic powder at a certain percent. After the high temperature and mould extruding, the wood and plastic composites and becomes the final products.

8. Commercial Terms
1.Payment: 30% by T/T as advance payment, balance(70%) by T/T before shipment
2.Lead Time: 60 days after receiving the advance payment
3.Transportation: container, simple package ( PE film, salver)
4.Warranty period: From the day of the use of the machine in the buyer’s factory:
(1) The mechanical Parts: 12 months
(2) The electrical Parts: 6 months
5. Installations and Commissioning
(1) Up to date commissioning has been made before shipment
(2) Overseas Commissioning and charges
one or two technicians will be sent to the buyer to guide the installation and commissioning of the equipment if the customer requests.
Customers pay the charge of our technicians.
(1) Round-trip Airplane Ticket
(2) Charges of transportation, accommodation and communication
(3) The allowance for the technicians is USD 80 per day for one person.
(4) An interpreter is needed.
6. Spare parts:
Spare parts for one year are needed for the customers, and we suggest that customers should buy the spare parts. (Fittings list will be provided.)
7. English manual, Figuration drawing, and footing drawings are provided.

Zhangjiagang Flame Machinery Co., Ltd is located in national civilization hygienic city close to Shanghai, which is specialized in producing rubber and plastic machinery, including internal mixer, open mill, calendaring machine, extruder production line and recycling production line ,etc. We aim at providing the best quality of products and service to all customers, through continuously improving and developing.

Until now through continually practicing and improving, we already formed a high quality team including advanced talents. We have strictly control system in the products researching, producing, assembling, testing and deliver. Meanwhile we will ensure the market competitiveness and customer applicability by innovating and improving the design and quality of the product.

Flame company insists the management idea of “ excellent quality, integrity manage, high quality after-sales service” ,so that we can win more and more customer’s trust and support from home and abroad .Providing profitable machinery for customers and getting their acceptation are our final success!

Warmly welcomed domestic and oversea customers to visit and inspect our factory, creating mutual benefit for both of us!
