Low energy consumption High strength SJ-65(one to two) Strapping Extrusion Line

PET has advantage of good rigidity, high temperature-resistance, rust-resistance and the specific gravity is only 1/5 as steel belt. It is suitable for different kinds of enterprise for packing.

The PET packing belt has the characteristic of high stretch-resistance, small extending rate, impact-resistance, good flexibility, easy operation, safety and low cost, etc. It is the perfect substitute of steel belt and used in packing paper, woodwork, textile, cotton, fibre and pallet.

This product can be connected by common steel buckle or by manaul.

Quick Detail:

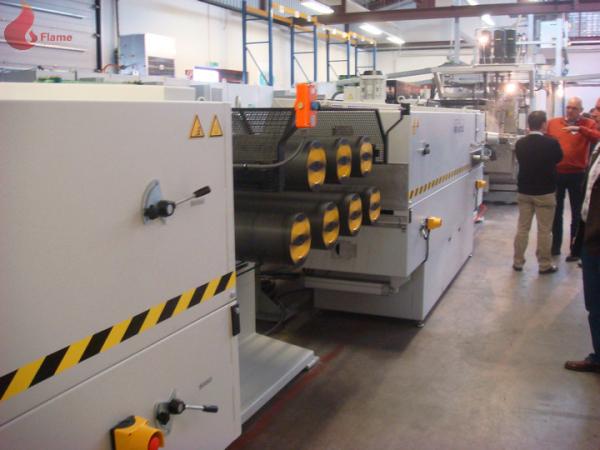

PET Strap Production Line consists of LDAS,calender ,extrusion tool,chilled-water storage,stretcher,Tension setting machine winding machine and other machine

Description:

1. Raw material: PET bottle flake (or PET pellet)

2. Product: PET strap

Width: 9mm-25mm(6-16mm is also OK) Thickness: 0.5mm-1.5mm

3. Output: no less than 1.5 tons /24 hour

4. Workers: 4 -6 workers per day(work time is 24hours)

5. Installing equipment total power: 120KW, (380V; 50 Hz)

6. Workshop area: length (25-30m) * width (3-5m) * height (3-6 m)

Applications:

PET Strap Production Line is made of polyethylene glycol terephthalate and other material which is a new kind of eco-friendly packing material that take the place of Steel Strip. Through the development of new material , the cost of it goes down rapidly. Now PET Strap Production Line is used a lot in the steel industry, chemical fiber industry, aluminum industry, paper brick, ceramics, screw industry, the tobacco industry, electronics industry, textile industry and wood industry, etc. it is the new high strength Straps and widly used around the world which take the place of Steel Strip.

Specifications:

Competitive Advantage:

1) Raw material is dried via the CSG series drying system which is made by our company, its minus fourty degree centigrade dew point make the moisture content of the raw material no more than 40PPM possible, what’s more, it is useful for the solid phase condensation and increase sticks to the raw material;

2) After the dry system, raw material adopts the closed cycle expulsion system, no contact with the air outside, to assure the dry effect of the raw material;

3)The extruder adopts the PET special screw, the screw’s unique separation and mixing ability enable the material even plasticizing; Dosing and steady extrusion assure even length and width of the strap.

4) The mould is self designed, different standards are made to the mold; Leakage of the material is eliminated after the improvement of the melt exchanger.

5) Static casting machine replaces the early water trough to cool the facility, casting piece is cooled under the certain constant temperature, which improves the molecular longitudinal orientation, and increases the end product longitudinal strength;

6) Calefactive anneal treatment is made after the shape of the strap, to remove the stress left after the strech, this stabilizes the molecular orientation, alleviates the phenomenon/matter of depositing metamorphism;

7) Fetching adopts double-stage winder, easy to operate.

Service:

1. Oversea installation guide.

2. Oversea test running

3. Ovsersea worker training

4. Technical support

5. Spare parts supply

6. Technical operation support

7. Formula and processing support

Commercial terms

1. Payment: 30% by T/T as advance payment, balance(70%) by T/T

before shipment

2. Lead Time: 60 days after receiving the advance payment

3. Transportation: container, simple package ( PE film, salver)

4.Warranty period: From the day of the use of the machine in the buyer’s

factory:

(1) The mechanical Parts: 12 months

(2) The electrical Parts: 6 months

5. Installations and Commissioning

(1) Up to date commissioning has been made before shipment

(2) Overseas Commissioning and charges

one or two technicians will be sent to the buyer to guide the

installation and commissioning of the equipment if the customer

requests.

Customers pay the charge of our technicians.

(1) Round-trip Airplane Ticket

(2) Charges of transportation, accommodation and communication

(3) The allowance for the technicians is USD 80 per day for one person.

(4) An interpreter is needed.

6. Spare parts:

Spare parts for one year are needed for the customers, and we suggest

that customers should buy the spare parts. (Fittings list will be

provided.)

7. English manual, Figuration drawing, and footing drawings are

provided.

Zhangjiagang Flame Machinery Co., Ltd is located in national civilization hygienic city close to Shanghai, which is specialized in producing rubber and plastic machinery, including internal mixer, open mill, calendaring machine, extruder production line and recycling production line ,etc. We aim at providing the best quality of products and service to all customers, through continuously improving and developing.

Until now through continually practicing and improving, we already formed a high quality team including advanced talents. We have strictly control system in the products researching, producing, assembling, testing and deliver. Meanwhile we will ensure the market competitiveness and customer applicability by innovating and improving the design and quality of the product.

Flame company insists the management idea of “ excellent quality, integrity manage, high quality after-sales service” ,so that we can win more and more customer’s trust and support from home and abroad .Providing profitable machinery for customers and getting their acceptation are our final success!

Warmly welcomed domestic and oversea customers to visit and inspect our factory, creating mutual benefit for both of us!
