Φ610x1830mm Two Roll Mixing Mill Rubber Mixing Machine With Gear Coupling Transmission​

Description:

Rubber mixing mill

1. The rolls are made of chilled cast iron with spun casting.The roll face is hard and anti-wear.The internal cavity is processed to make temperature well proportioned on the roll surface.

2. The machine is equipped with an overload protection device to prevent the major components frombeing damaged due to overloading.

3. The machine is also equipped with an emergency device.When an emergent accident happens,just draw the pull rod,and the machine will stop immediately.it is safe and reliable

4. The transimission system adopts a ZQ planetary gear reducer,which has a compacted structure with higher transmission efficiency,lower noise and longer service life.

5. The base frame is a complete framework,which is convenient for installation.

Applications:

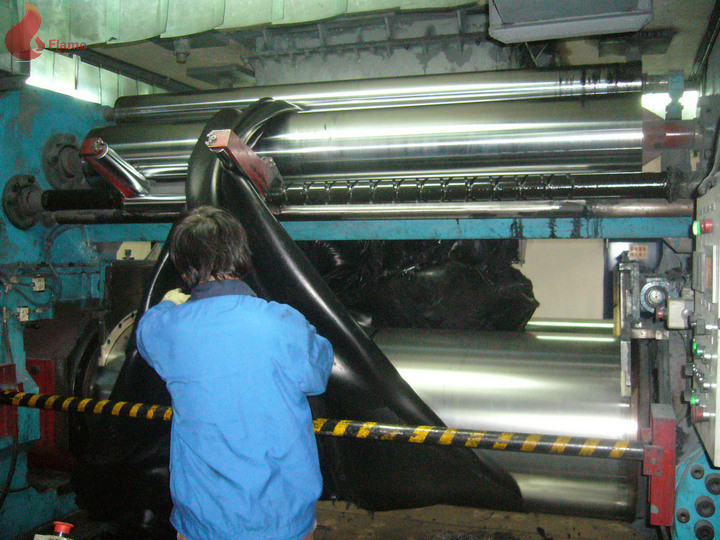

Two rollers open rubber mixing mill main used in rubber product factory: Natural rubber refining, raw rubber and compound mixing. Rubber beating mixing and rubber tab letting.
This machine is double roller opening to be used for rubber or plastic mixing. It consists of seat, Frame, Rubber, Driving device, Lubricator and cooler, range adjusting device of roller. Safety brake. Motor and reducer, etc. The roller is made from safety cooled and hard cast iron, smooth surface is polished in term of different case. Saturated steam and cooling water can be inputted in the empty roller to adjust temperature of roller. Colloidal particles are drawn into the gap of the two rollers which make relative rotation in different velocity to mix rubber, into further rubber sheet.

Description:

1. General Specification

1-1.Roll Size : Φ610x1830mm

1-2. Mixed Raw Material : Rubber

1-3.Electric

1) Main Power : 380V x 50HZ x 3Φ

2) Auxiliary : 380V x 50HZ x 3Φ

3) Control Power : 220V x 50HZ x 1Φ

1-4. Utility

1) Cooling Water : 2 ～ 3 Kg/cm²

2) Steam Pressure : 5 Kg/cm²

2. Main Specification

2-1.Main Motor

1) Type : Totally Enclosed Cage Rotor

2) Power : A.C 132KW x 8P x 380V x 50HZ

3) Power Transmission : Gear Coupling

2-2. Reducer

1) Type : Un-Drive Type

2) Capacity : 132KW

3) Ratio : 1/22.1

4) Gear Type : Single & Double Helical

5) Bearing : Roller Bearing

6) Material

(1) Case : Mild Steel Welding Structure

(2) Pinion : 20CrMnTiA

(3) Gear : 20CrMnTiA

(4) Gear Shaft : 20CrMnTiA

(5) Output Shaft :42CrMoA

7) Lubrication : Forced Circulation

8) Power Transmission : Gear Coupling

2-3. Frame and Cap

1) Type : Opened Top Type

2) Material : Mild Steel Welding Structure

2-4. Roll Parts

1)Roll

(1) Type : Bored Roll

Front Roll :Straight

Rear Roll :Straight

(2) Size : Φ610x1830L

(3) Material : Chilled Cast Iron

(4) Chilled Depth : 10～15 mm

(5) Hardness : HS 70 ±2

2) Roll R.P.M

(1) Front Roll : 20.45 R.P.M

(2) Rear Roll : 22.09 R.P.M

(3) Friction Ratio : 1/1.08

3)Nip Adjusting

(1) Type : Motor

(2) Effective Roll Gap : Max.50mm

(3) Indicator : Memory Plate(Left & Right)

4) Journal Bearing

(1) Type : Spherical Roller Bearing

(2) Bearing Case : Cast Steel,ZG25

(3) Lubrication : Forced Circulation System

5) Temperature Control

(1) Cooling & Heating Method: Manual Type

6) Roll Drive

Motor——Gear Coupling——Reducer——Universal Joint----Rear Roll & Front Roll

2-5. Stock Guide:

1) Type : Fixed

2) Material : Steel Plate,Chrome plate.

2-6. Emergency Stop Device

1) Type : Hydraulic Show Brake

2) Operation : Push Button S/W---- 4Pcs

Rope S/W----Front Side 1Pc

Foot S/W----Front Side 1Pc

2-7. Bed

1) Type : Common Bed

2) Material : H-Beam

3) Institution : “J” Anchor Bolt

4) Acc'y : Tray (304 Stainless Steel)

2-8. Trimming Knife

1) Type : Manual Bar Type

2) Material : 45# Steel

3) Knife Q’ty : 4 PCS

Other terms:

1. Delivery period: totally 8 months after the contact is confirmed;
2. Payment: 30% of the total amount by T/T in advance as down payment, 70% of total amount by L/C;
3. Spare parts: The seller supplies one set of valueless vulnerable parts for free. The seller also suggest that the buyer buy one set of several spare parts for storage one year’s operation. The seller will show the list of spare parts to the buyer for his choose before delivery.
4. Exterior and color: Exterior and color of the machines are based on the seller’s standard. Off course we can produce according to buyer’s shade-guide;
5. Electric power: The quotation above is based on 380V/50Hz. There will be some additional fee and extended producing time for custom-built electric power requirements
6. Warranty period:
   1. Machines: one year after successful debugging;
   2. Electrical components: 6 months after successful debugging;
7. Debugging service aboard: The seller sends four technical workers (or more as buyer’s request) to the place which appointed by the buyer for instructing the debugging service;
   1. The seller is in charge of the fee cost in China but except for the visa charge.;
   2. The buyer is in charge of the fee cost aboard and the visa charge. This fee includes but not limited as below:

1. Flight fee for cruise;
2. Traffic, meal and living fee during evection;
3. Allowance(manpower fee) USD 80.00 for one person one day
4. Transporter: The buyer should hire a translator for convenient communication. Otherwise the seller will send an additional translator. The buyer should be in charge of this cost (refer to a~d).

Zhangjiagang Flame Machinery Co., Ltd is located in national civilization hygienic city close to Shanghai, which is specialized in producing rubber and plastic machinery, including internal mixer, open mill, calendaring machine, extruder production line and recycling production line ,etc. We aim at providing the best quality of products and service to all customers, through continuously improving and developing.

Until now through continually practicing and improving, we already formed a high quality team including advanced talents. We have strictly control system in the products researching, producing, assembling, testing and deliver. Meanwhile we will ensure the market competitiveness and customer applicability by innovating and improving the design and quality of the product.

Flame company insists the management idea of “ excellent quality, integrity manage, high quality after-sales service” ,so that we can win more and more customer’s trust and support from home and abroad .Providing profitable machinery for customers and getting their acceptation are our final success!

Warmly welcomed domestic and oversea customers to visit and inspect our factory, creating mutual benefit for both of us!
