1. Introduction of Product

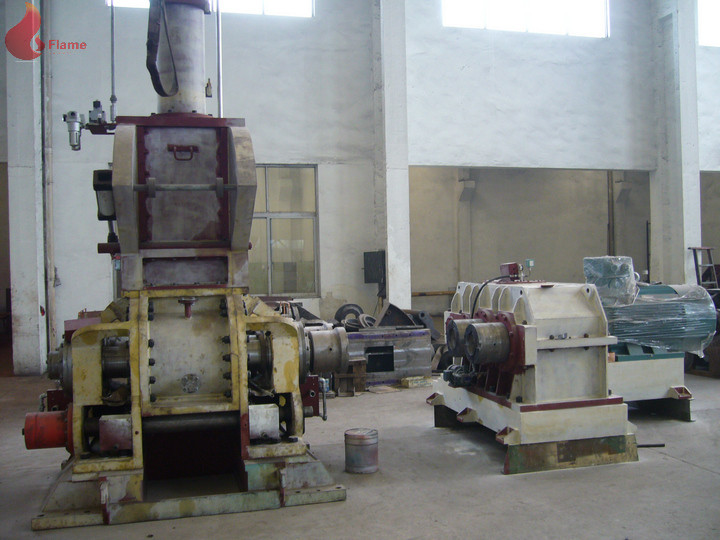

100L Drop Door Type Banbury Mixer For Artificial Leather And PVC
Film
Name | Banbury Mixer | Heating Way | Oil Or Steam |
Type | Drop door Or Internal | Feature | It is mainly used for plasticizing, mixing and final mixing the
stock |
rotors | Chrome Plated and Alloy Hardfacing Electrodes |
Material | Cast Steel | Connect Way | cardan |
capacity | 120-150 Kg/batch | Certificate | CE |
2. Description:
100L Drop Door Type Banbury Mixer For Artificial Leather And PVC
Film
Total cubage: 100L,Rotary speed of front roll: 40r/min;Rotary speed
of back roll: 34r/min;Motor power: AC 220kw/380W/50Hz;Oil heating
or steam heating type.
Precision roller sphere bearing;Compulsory lubrication;The
discharge door of the machine can be opened by person when the
electric is off;
3. Equipment list
1 main body 1 group
2 press hammer and cylinder 1 group
3 material feeding device 1 group
4 discharge device 1 group
5 transmission device 1 group
6 electric control device 1 group
7 oil pressure and lubricate device 1 group
8 tubing 1 group
4. Applications:
1. PVC Artificial Leather;
2. PVC film
3. PVC plastic floor
4. PVC plastic sheet
5. Plastic mixer
6. Rubber mixer
5. Main Technical Parameter:
Project Model | S-75L | S-100L | S-120L | S-160L |
Working capacity of mixing chamber (L) | 75 | 100 | 120 | 160 |
Rotating speed of rear rotor (r/min) | 1:1.17 | 1:1.17 | 1:1.17 | 1:1.17 |
Main motor power (kw) | 160 | 220 | 300 | 400 |
Pressure of compressed air (MPa) | 0.6 | 0.6 | 0.6 | 0.6 |
Weight (t) | 22 | 24 | 28 | 32 |
Overall dimensions(mm) | 5100×2200×3000 | 5500×2300×3200 | 5650×2350×3300 | 5800×2500×3450 |
6. Competitive Advantage:
1. PLC control system
2. Lower noise,safer mixer
3. Excellent dispersing effect
4. Best mixing chamber to get 100% mixing effect.
5. Fast mixing, good effectivity
6. Easier Maintenance.
7. Long life.
8. No leakage.
7. Service:
1. Oversea installation guide.
2. Oversea test running
3. Oversea worker training
4. Technical support
5. supply of spare parts
6. Technical operation support
7. Formula and processing support
8. Option
Two rotors mixer the relative rotation, the material from the feed
mouth clamp into the roll gap by rotor extruding and shearing,
after() through the roll gap above the top tied pien is divided
into two parts, respectively along the chamber wall and the gap
between the rotor before and after the return to roll gap above.In
a week around the rotor flow, material is influenced by the shear
and friction action, make rubber temperature rise sharply, lower
viscosity, increased the wettability on the surface of the rubber
in the compound, make good contact with rubber and compound
surface.
9. Commercial Terms
1. Payment: 30% by T/T as advance payment, balance(70%) by T/T
before shipment
2. Lead Time: 60 days after receiving the advance payment
3. Transportation: container, simple package ( PE film, salver)
4.Warranty period: From the day of the use of the machine in the
buyer’s factory:
(1) The mechanical Parts: 12 months
(2) The electrical Parts: 6 months
5. Installations and Commissioning
(1) Commissioning will have been made before shipment
(2) Overseas Commissioning and charges
one or two technicians will be sent to the buyer to guide the
installation and commissioning of the equipment if the
customerrequests.
Customers need to pay the charge of our technicians.
(1) Round-trip Airplane Ticket
(2) Charges of transportation, accommodation and communication
(3) The allowance for the technicians is USD 80 per day for one
person.
(4) An interpreter is needed.
6. Spare parts:
Spare parts for one year are needed for the customers, and we
suggest that customers should buy the spare parts. (Fittings list
will be provided.)
7. English manual, Figuration drawing and footing drawings are
provided.
