Automatic Rubber Injection Moulding Machine Gasket Cutting Machine
Single Shaft Type
Full automatic rubber gasket cutting machine
All kinds of rubber, silicone gasket, round, oval, rectangular
tubular product rapid
precision cutting shape.
Original single modes or can be made more than a mold cavity
section for rectangular products (such as
washers) through change mould, the product into one module and one
cavity, forming of the tubular products,
the use of this product is equidistant cutting forming, can greatly
improve the efficiency, saves the multi-cavity
filler, a single product trimming hours, liberate the workforce)
improve the product accuracy (because of
difference of multi-cavity mold, aging caused by the product
difference), can greatly save the multimode
cavity scrap material.
USES the automatic program control measures of material system,
reducing the need to replace the jig to
complete before unloading process cumbersome.
Using the Japanese precision ball screw and original guide rail,
with imported servo control system, servo
motor, imported frequency converter, PLC control, temperature and
reliable. Precise control of cutting the
size of the aprons, achieve smooth incision, no knife, cut the
surface is bright and clean, especially suitable
for cutting deeper gasket.
LCD touch-screen control, the be clear at a glance all cutting
parameters, operation is extremely easy to
understand. All electrical components and pneumatic components
adopt domestic famous brand products,
to ensure the stability and reliability of the machine used for a
long time.
Multi-axis cutter can cut the realization more at the same time,
every time greatly improve production
efficiency, reduce the cost of production of the factory. This
machine can be installed circular or bar alloy
blades. Specifications according to your free replacement required
tools, on the tools for your costs to a
minimu
| Model | NLQ-QGJ-1 |
| Cutting effidency (tines/min) | >120next/min |
| Work speed | 100～2000r/min |
| Cutting precision | ≤±0.01mm |
| Cutting diameter | Φ10～Φ150mm /(if there is a larger product, it can be customized) |
| Cutting length | normalized form≤130 mm/lengthened type≤350mm |
| Cutting thickness | ≤30mm |
| Cutting tool specification | The circular knife:Φ60×Φ25.4×Φ0.3mm |
| Bar knife3×3×60mm |
| Compressed air consumption | 20L/min |
| Air pressure | 0.5～0.8MPa |
| Vacuum degree of work | ≤-0.035MPa |
| Power suppiy | AC220V±5% |
| Total power | 1.5KW |
| Weinght | ≈400kg |
| Machine Size | 1300*800*1430mm |

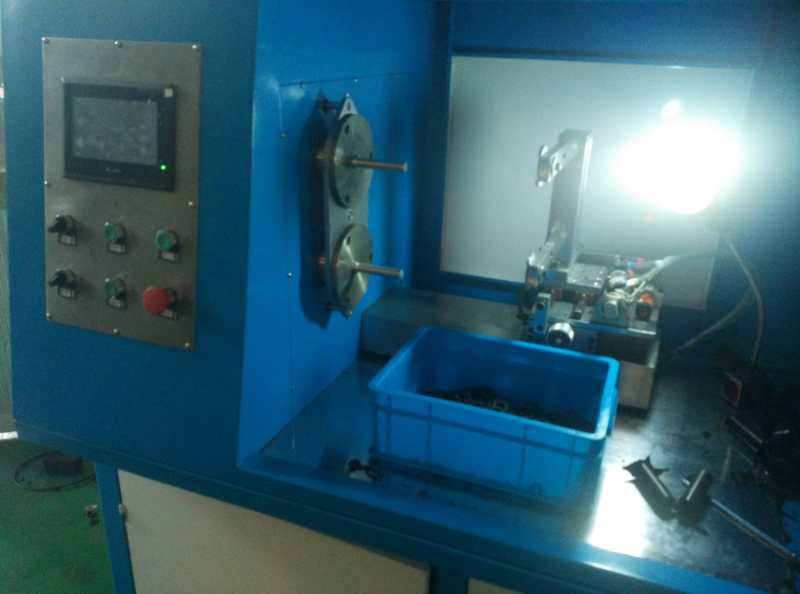

Features and USES: the structure of rubber washer cutting machine
adopts stepper motor + imported
ball screw pair + linear bearing transmission, stable and reliable
processing, and equipped with protective
cover.The cooling water tank installed in the machine can be used
for cooling products in the process of
processing.The appearance of the machine is made of carbon steel
and the surface is sprayed with plastic
at high temperature.Electronic control part adopts Taiwan frequency
converter +PLC control, LCD control,
flexible and convenient adjustment, the total length of processing,
processing thickness can be set, the
speed is infinitely variable, stable control.Cutting tolerance less
than 0.05mm, high accuracy, strong
durability.The spindle screw can be guaranteed for 10 years.
Multi-step feed: the slice thickness can be adjusted from the
standard cutting width of 0.5 ~ 6.5 per blade
to 0.5 ~ infinite width.Greatly increased the machine cutting
tolerance
Fast and slow cutting: this design is especially suitable for
cutting gaskets with larger wall thickness.If
combined with the function of multi-step feed, it will save time
and improve production efficiency
significantly.
