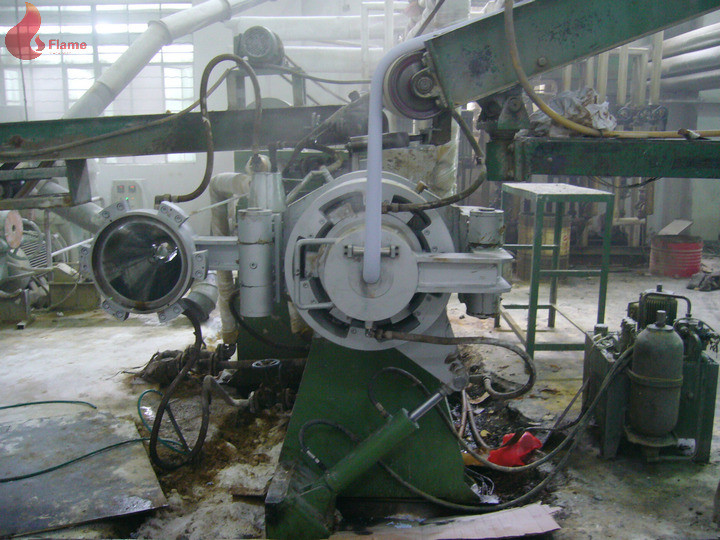

Rubber plastic extruding machine For Business , Rubber Strainer
Machine Smooth Running
♦Application:
The filter Rubber raw material enters the rolling mill to filter
away impurities such as scrap iron, stones, etc.to ensure the
safety of the roller of the rolling mill. In the process of
rolling,the threshing of the screw rod promotes the uniform
plasticization of the rubber,and cool perservation by water can be
adopted for stablizing the process.
♦Features:
♦Screw made of special steel is with nitrogen treatment,durable.
♦Jacketed type barrel can be cooled for cooling the rubbers
effectively.
♦Double head strainer to be quickly and easily exchanged.
♦Smoothly running and high output.
♦Equipped with die-head auto opening system when electric power is
cut off.
￠10″Strainer Technical Parameters
Main Specification
1, Screw Diameter: ￠10″ (250mm)
2, Screw Rotor Speed:Max.75r/min
3, Production Capacity: 1500-2000 Kg/Hr
4, Main Motor: 110KW,DC Motor,Hangzhou Hengli Motor Co. Made
Equipment
1, Screw 1unit
2, Barrel 1unit
3, Head & Die 1unit
4, Base Frame 1unit
5, Transition System 1unit
6, Lubrication and Hydraulic System 1unit
7, Electric Control Case 1unit
Details
1, Screw 1unit
(1) Screw Diameter: 10”, Material: 38CrMoAlA, Nitrate Treatment,
Water cooling in the screw centre；Special designed for flexible and
semi-rigid PVC films； 1 pc
(2) Joint head, includes inner pipe
2, Barrel 1unit
(1) Type:Double wall jacket type,can be used for heating and
cooling.
(2) Material:Carbon Steel for outer barrel jacket;
Hard wearing alloy steel for inner jacket.
(3) Barrel:Mould temperature governed by digit indicator.
3, Head and die 1unit
(1) Head type: Two head type;
Jacket composed for heating.
(2) Clamping by hydraulic cylinder with hydraulic unit
(3) Strain agent and spacer
4, Base Frame 1unit
(1) Shape steel welded structure.
5, DC Motor 1unit
(1) Type:Regular torque type
(2) Connect bearing:Connecting the motor and reducer.
(3) Main motor:110KW,DC,Hangzhou Hengli Motor Co., Made.
Rotor Speed:1500r/min.
6, Hydraulic Unit 1unit
1) Used for head clamping and opening.
2) can open the head when electricity is cut off, Convenient for
cleaning the material.
7, Control Case 1unit
(1) Type: Coated stand type
(2) Accommodation device: Magnetic switch; Switches; Indicating
Lamp
(3) Contactor: Siemens made;
Competitive Advantage:
1. Compact type
2. Die head design
3. Convenient control
4. good quality
5. low price
6. Good after-sale service
